Laser Reflectors and Micro Reflectors for High-Precision Laser Sensors
IMOS® Gubela develops and manufactures high-precision laser reflectors, micro reflectors and micro cube-corner reflectors specifically engineered for demanding applications in laser sensing, optical measurement technology and industrial automation. Our laser reflectors provide precise and reliable light return, ensuring stable signal performance even with fine laser beams and under challenging operating conditions.
Using advanced microstructure technology, our laser reflectors deliver consistent light reflection and reliable signal return, even in applications involving vibration, varying angles of incidence and long sensing distances. This makes IMOS reflector solutions the ideal choice for high-precision laser sensors, optical measurement systems and industrial automation applications.
What Are Laser Reflectors?
Laser reflectors are high-precision optical components designed for use with laser sensors, laser measurement systems and precision optical applications. They accurately return the emitted laser beam to its source, enabling reliable distance measurement, position detection and object recognition.
Compared to conventional reflectors, laser reflectors require significantly finer and more precise reflector structures to ensure reliable light return and consistent signal quality, even with extremely small laser beam diameters.
Thanks to their outstanding precision and long-term reliability, IMOS laser reflectors are ideal for demanding industrial applications, including automation, precision measurement, logistics and quality control. They are also well suited for highly regulated industries such as the pharmaceutical and medical technology sectors, where consistent signal performance and process reliability are essential.
Micro Reflectors and Micro Cube-Corner Reflectors for Advanced Laser Sensors
Our micro reflectors are manufactured with high-precision micro mirror structures specifically engineered for use with laser sensors, laser measurement systems and other high-precision optical applications.
Our advanced micro cube-corner technology provides:
- Precise light return for accurate laser beam reflection
- Minimal beam offset for maximum measurement accuracy
- Reliable performance, even with extremely small laser beam diameters
A cube-corner reflector consists of three precisely aligned reflective surfaces that return the incident light beam almost parallel to its source, regardless of the angle of incidence. This unique optical principle ensures high reflection efficiency, excellent signal stability and exceptional measurement accuracy, making IMOS micro reflectors the ideal solution for demanding laser sensing and precision measurement applications.
Lasercube® Reflectors – Innovative Technology for High-Precision Laser Sensors
With its proprietary Lasercube® Reflectors, IMOS Gubela® sets new standards in the performance of laser reflectors for modern laser sensors. Specifically engineered for high-precision laser applications, Lasercube® technology delivers exceptionally stable light return and outstanding signal accuracy, even with extremely fine laser beams.
The ultra-fine micro cube-corner reflector structures incorporate a large number of reflective elements within the laser beam diameter. This significantly reduces signal fluctuations and ensures highly uniform signal performance, resulting in reliable and repeatable measurements.
A key advantage of Lasercube® technology is its ability to provide a polarization-rotated return signal that can be reliably detected regardless of the reflector's mounting orientation. This allows the reflector to operate consistently in virtually any installation position, ensuring maximum process reliability, even in applications exposed to vibration, movement or demanding industrial operating conditions.
Why Choose IMOS Laser Reflectors?
IMOS Gubela® develops and manufactures high-precision laser reflectors, micro reflectors and micro cube-corner reflectors for demanding applications in laser sensing, optical measurement technology and industrial automation. As a specialist in reflective optics, IMOS combines decades of engineering expertise with state-of-the-art manufacturing technologies and innovative microstructure design.
Whether you require a standard product or a fully customized reflector solution, IMOS works closely with you to develop the optimum solution for your specific laser application. Our reflector solutions deliver outstanding optical performance, maximum signal stability and long-term reliability, even under the most demanding operating conditions.
Looking for the ideal reflector solution for your laser application?
Contact our experts today and let us develop the optimum high-precision laser reflector for your application.
Discover More Reflector Solutions for Demanding Applications
Explore our specialized reflector solutions for laser sensing, UV applications, high-temperature environments and other demanding industrial applications.
High-Temperature Reflectors

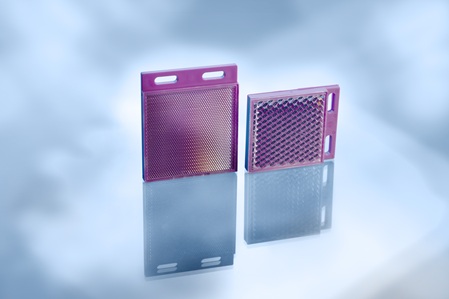

UV Reflectors

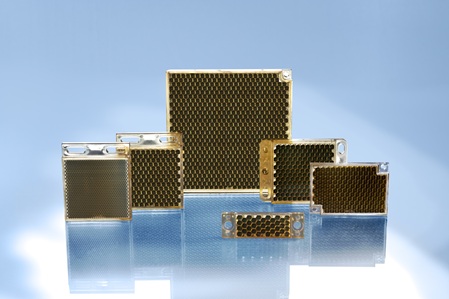

Chemical-Resistant Reflectors

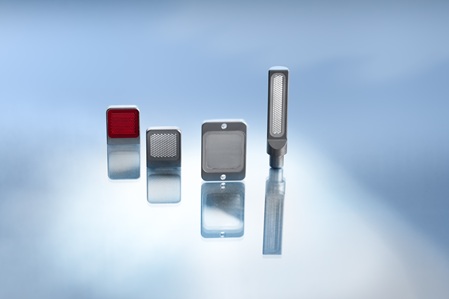

Stainless Steel Reflectors
