Precision Reflector Structures and Optical Metal Structures for Industrial Applications
Reflector structures are the core of high-performance optical systems. They determine how light is reflected, redirected or precisely returned to its source, directly influencing the efficiency, sensing range and reliability of optical applications.
IMOS Gubela® develops and manufactures high-precision reflector structures and optical metal structures engineered to meet the specific requirements of each application. From standardized solutions to fully customized designs, we offer a broad range of precision technologies for industries ranging from industrial sensing and optical measurement to safety systems and traffic infrastructure.
Why Precision Reflector Structures Matter
The optical performance of a reflector is determined by the geometry of its retroreflective elements, particularly the cube-corner (triple prism) structures. Precision manufacturing of these structures is essential for achieving reliable light return, maximum reflection efficiency and consistent optical performance.
Our reflector structures cover an exceptionally wide range of geometries, including:
- Cube-corner structure sizes from 6.0 mm down to ultra-fine 0.05 mm microstructures
- Optimized designs for both long-range detection and high-precision optical applications
- Maximum light return accuracy and reflection efficiency
- Reliable performance, even in demanding industrial environments
Your Benefits
High visibility, reliable light return and maximum operational reliability – precisely engineered to meet the requirements of your application.
Our Reflector Structures at a Glance

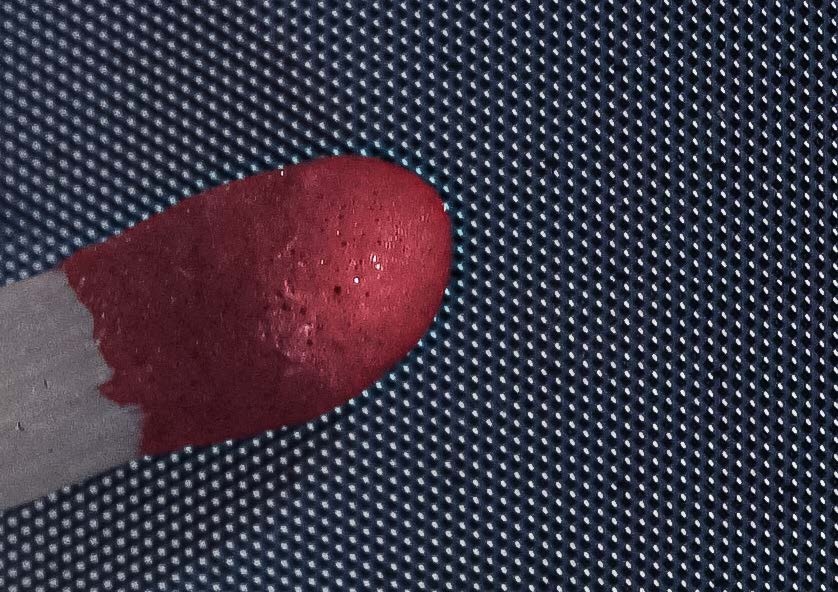

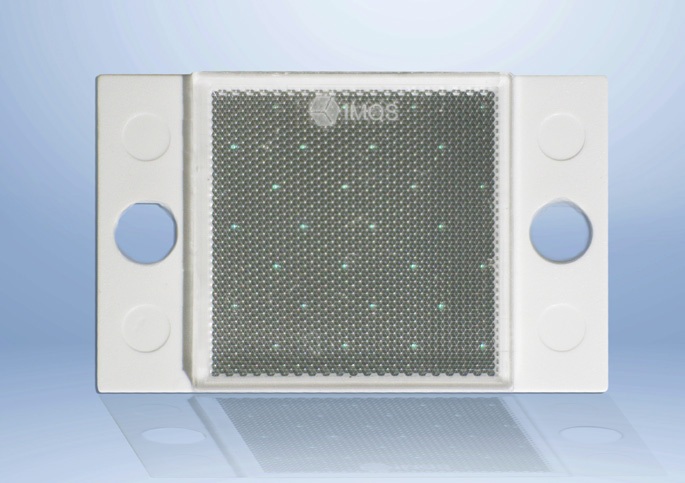

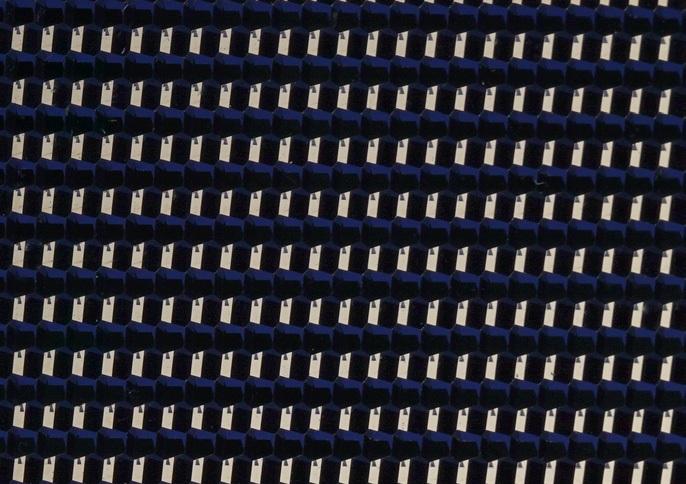

Ultra-Fine Full Cube Structures
High-precision full cube reflector structures with accurately defined light return angles. Ideal for high-precision sensor systems, optical measurement technology and micro reflectors.
Advantages
✔ Maximum precision
✔ Outstanding optical efficiency
Application Example

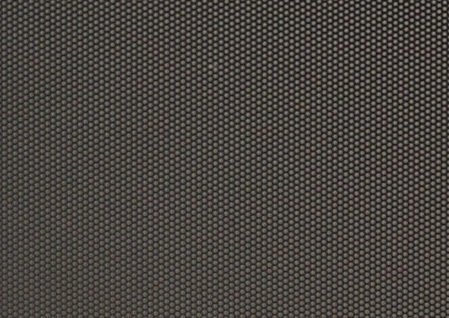

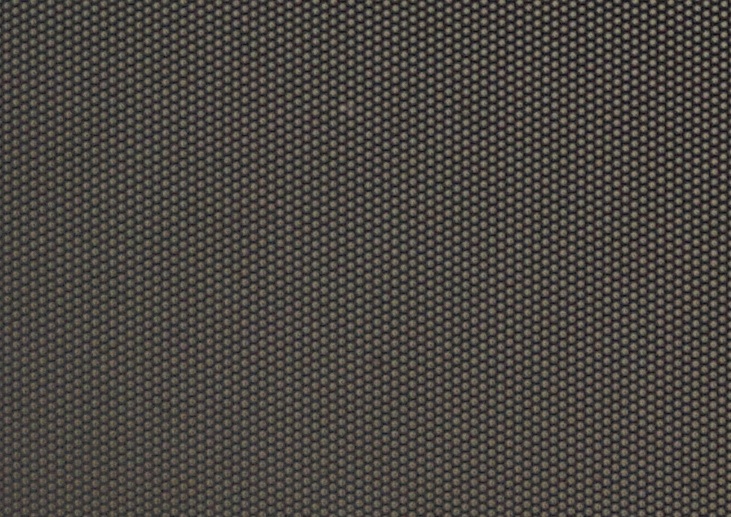

Pyramidal Reflector Structures
Pyramidal reflector structures provide wide-angle light distribution for excellent visibility from multiple viewing directions.
Advantages
✔ Wide viewing angles
✔ Enhanced visibility and traffic safety
Typical Applications
- High-visibility safety clothing
- Firefighting and rescue equipment
- Personal protective equipment (PPE)
- Child safety products
Application Example

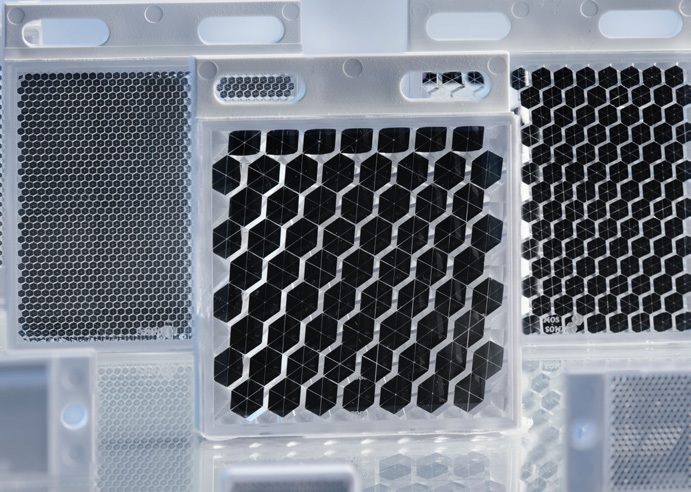

Cubic Reflector Structures
Uniform cube-corner reflector structures provide stable and consistent light return over long sensing distances.
Advantages
✔ Consistent optical performance
✔ Long sensing distances
Ideal for
- Industrial sensing
- Automation systems
- Laser measurement technology
Application Example

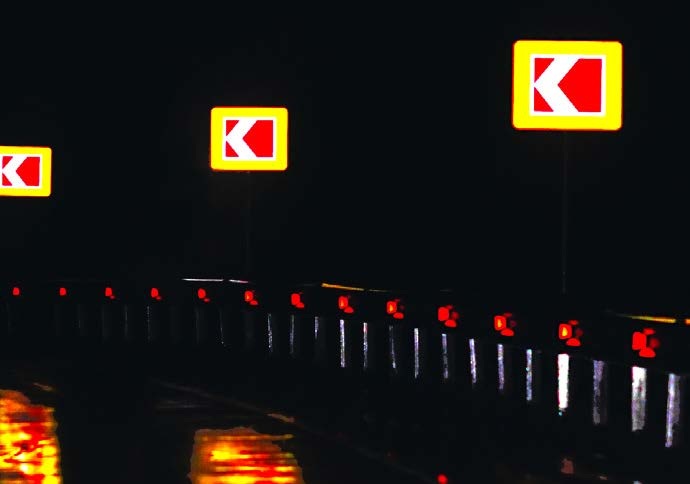

Road Stud Reflector Structures
Special reflector structures designed to provide maximum visibility in all weather conditions.
Advantages
✔ Extremely robust
✔ Excellent visibility in all weather conditions

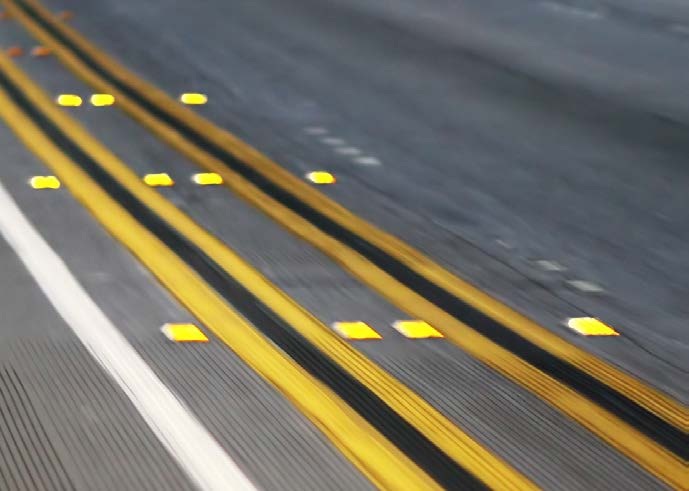

Typical Applications
- Road studs
- Raised pavement markers
- Road marking systems
Application Example

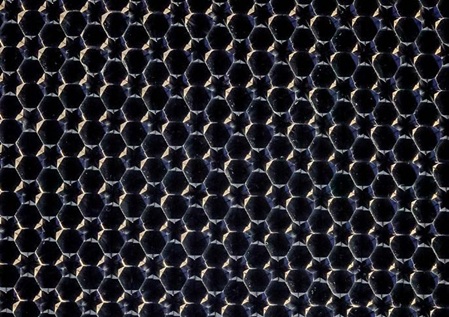

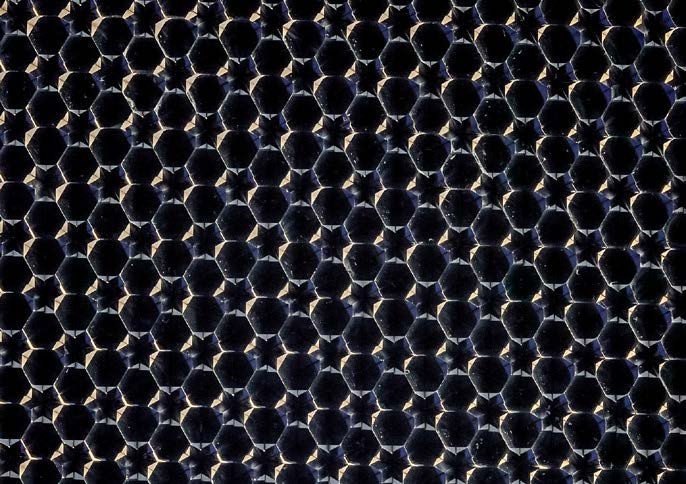

Intermediate Cube-Corner Structures
Designed for stable retroreflection at shallow angles of incidence, making them ideal for road infrastructure and outdoor safety applications.
Advantages
✔ Reliable performance at low angles of incidence
✔ Improved road safety

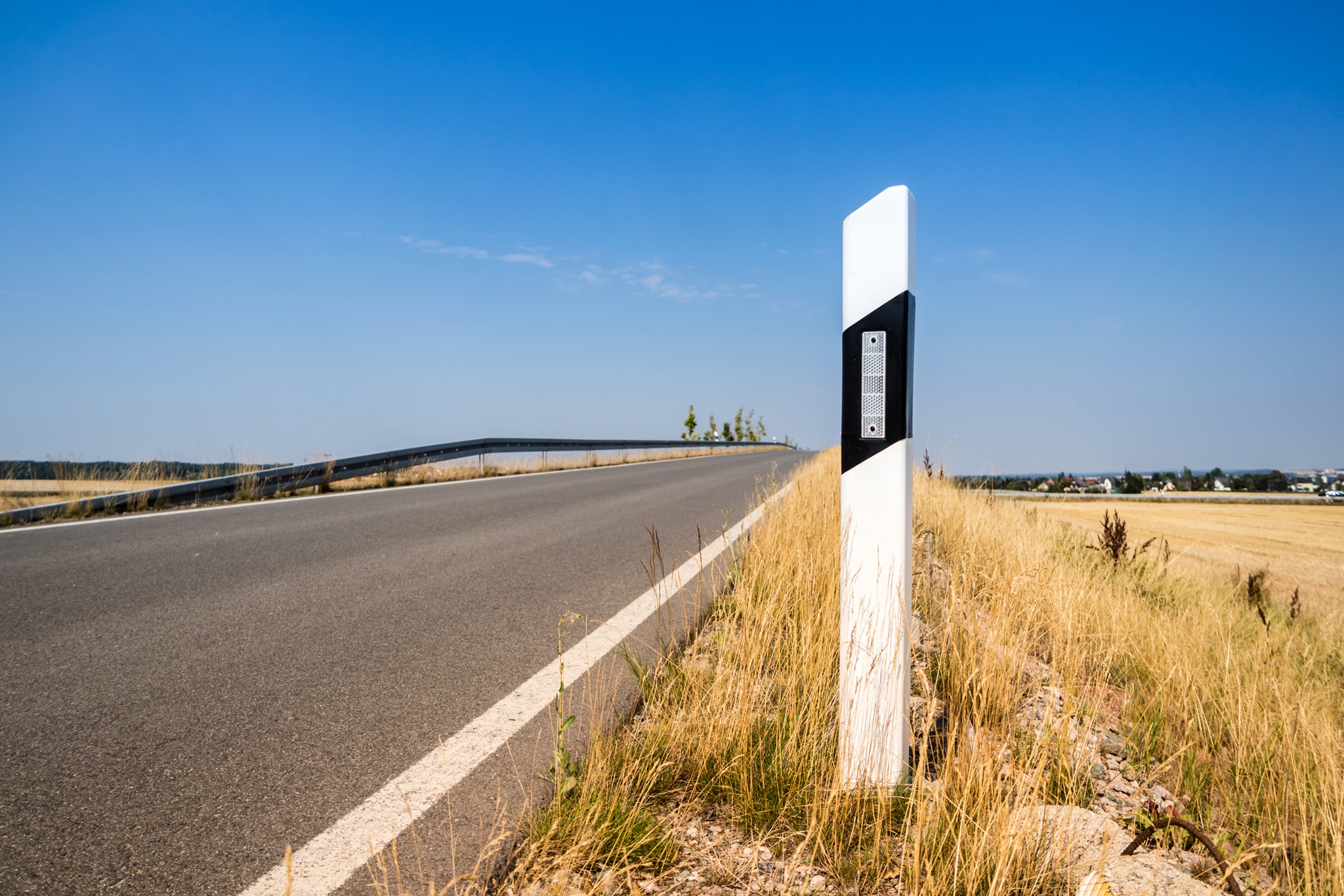

Typical Applications
- Roadside delineators
- Road reflectors
- Traffic safety systems
Application Example

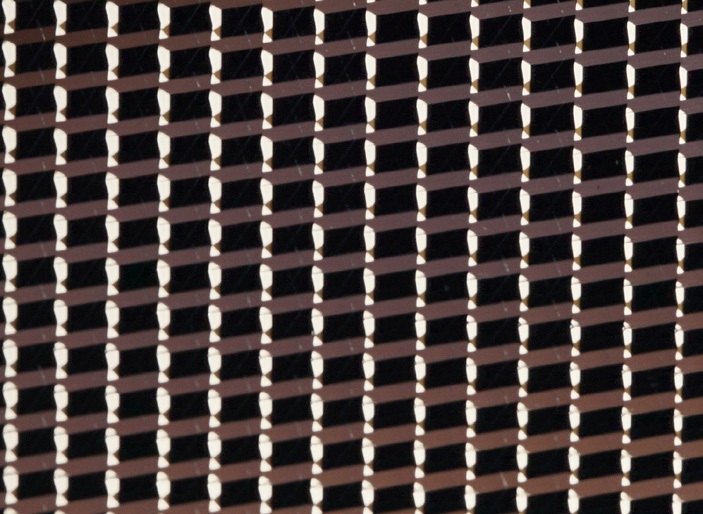

Wide-Angle Reflector Structures
Wide-angle reflector structures provide an acceptance angle of up to approximately 40°, ensuring reliable performance over a broad range of viewing positions.
Advantages
✔ Flexible application possibilities
✔ Reliable performance at varying angles of incidence
Ideal for
- Photoelectric sensors
- Safety applications
- Large-area visibility systems
Application Example

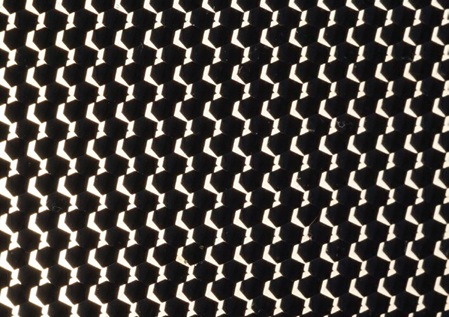

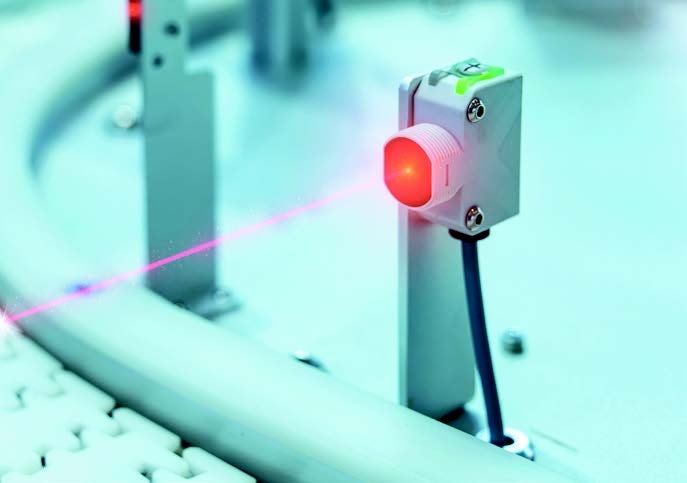

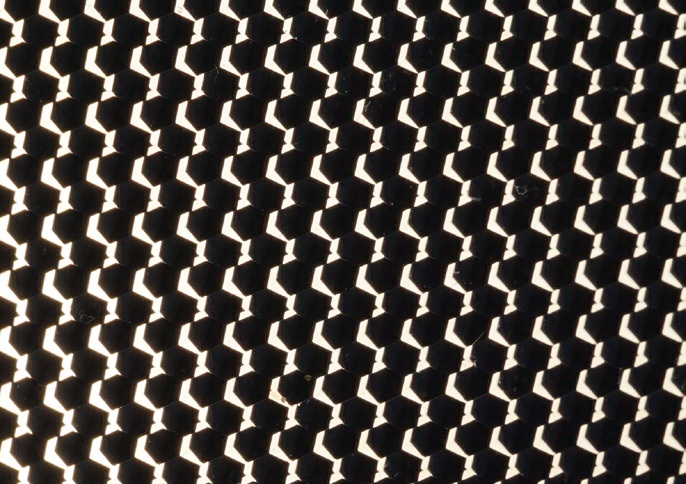

Light-Redirecting Cube-Corner Structures
Modified reflector geometries precisely redirect light for specialized optical applications requiring controlled beam guidance.
Advantages
✔ Precise light control
✔ Customized optical solutions
Ideal for
- Custom sensor applications
- Precision optical systems
- Application-specific reflector designs
Application Example
Custom Reflector Solutions for Every Application
Whether you need a standard product or a fully customized design, IMOS Gubela® develops and manufactures precision reflector structures tailored to your exact technical requirements.
Looking for a high-performance reflector structure optimized for maximum optical efficiency and your specific application?
Our engineering experts will work closely with you to develop the ideal reflector solution, from initial concept and technical design to series production.
Request Your Consultation Today
Contact us for expert advice and a customized technical solution. Together, we'll develop the optimum reflector structure for your application.
